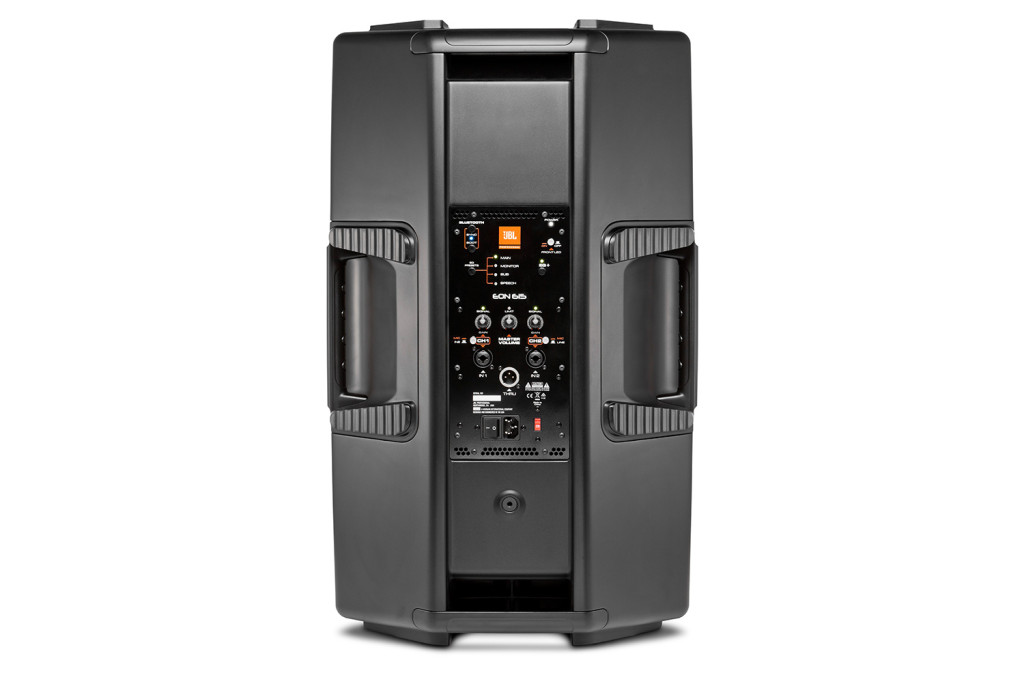

15″ Two-Way Multipurpose Self-Powered Sound Reinforcement
More than just another great JBL sound system, the new EON600 is a true step forward in technology developed specifically to deliver the best sound possible regardless of its application.
Completely rethinking how truly good an affordable self-contained, portable PA system can be, JBL engineers purposely designed and built the EON600 from the ground up featuring JBL’s advanced waveguide technology, JBL designed and manufactured transducers, and convenient, wireless remote control of its onboard DSP EQ parameters via Bluetooth.
This total redesign of the EON platform leverages the latest technologies in cabinet materials, acoustic science, transducer design and user friendliness that delivers the extraordinary quality of a high-end studio monitor in a fully professional, highly flexible, easy to use, portable system for today’s working musicians and sound providers.
- Enclosure designs have been optimized for ideal acoustic resonance taking advantage of injection molding techniques and mechanical shaping of the enclosures.
- JBL Waveguide Technology
- Bluetooth integration
|
System Type |
Self powered 15″, two-way, bass-reflex |
|
Max SPL Output |
127 dB |
|
Freq. Range (-10 dB) |
39 Hz – 20 kHz |
|
Freq. Response (±3 dB) |
50 Hz – 20 kHz |
|
Coverage Pattern |
90° x 60° |
|
Amplifier Design |
Class D |
|
Power Rating |
1000W Peak (700W LF + 300W HF), 500W Continuous (350W LF + 150W HF) |
|
Dimensions (H x W x D) |
707 x 439 x 365 (mm)
27.8 x 17.3 x 14.4 (in) |
|
Net Weight |
17.69 kg (39 lbs) |
The JBL deluxe weather resistant outdoor cover was made specifically for EON615. Offering protection for temporary outdoor use, rain or shine, this cover keeps your speaker looking like new.
- Constructed using a 420-D Nylon exterior fabric comprised of two layers; the outer woven layer provides abrasion resistance and durability, while the inner waterproof layer offers protection from the elements
- Zippered front panel with roll-away feature allows speaker use with protective cover in place
- Access to rear panel inputs and side carry handles
- Ventilation ports on amplifier section to promote air flow
- Durable #10 nylon coil zippers
- Printed JBL logo on front panel
- Black exterior color
- The official protective cover for JBL EON loudspeakers
JBL deluxe padded cover for EON615. Water Resistant Black Nylon Exterior with 5mm Padding and Handle Access Openings.
- Durable 600-D Nylon outer fabric – keeps out dust, dirt, and helps prevent dents & dings
- Interior padded with protective foam layer and soft tricot lining
- Handle cut-outs provide access to built-in cabinet handles
- Printed JBL Professional logo on front panel
- Black exterior color
- The official protective cover for JBL EON loudspeakers
Deluxe Carry Bag w/ 10mm Padding & Dual Access Zippers. Includes Two Heavy-Duty Carry Handles, EON615 Handle Access Cover, and Accessory Pocket. Fits EON615.
- Offers superior protection and easy transportation for your EON615 loudspeakers
- Durable 600-D Nylon outer fabric with 10mm soft padding throughout
- Bag constructed from nylon with water-resistant backing
- External pocket provides generous storage for cables and accessories
- Heavy-duty reinforced carry handles with polyethylene core
- Durable “double access” #10 nylon coil zippers
- Handle cut-outs provide access to built-in EON handles
- Embroidered JBL logo on side panel to compliment your EONs
- Black exterior
Deluxe Roller Bag w/ Wheels & Tow Handle. Heavy Duty Carry Handles. Fits EON615.
- The ultimate in mobility for your EON615 loudspeakers
- Telescoping tow handle and roller wheel assembly lets you roll in and out of gigs quickly & efficiently
- Offers superior protection with durable 600-D Nylon outer fabric
- Bag constructed from nylon with water-resistant backing
- External pocket provides generous storage for cables and accessories
- Heavy-duty reinforced carry handles with polyethylene core
- Durable “double access” #10 nylon coil zippers
- Handle cut-outs provide access to built-in EON handles
- Embroidered JBL logo on side panel to compliment your EONs
- The official transport bag for JBL EON loudspeakers
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
- Gas assist tripod that lifts the speaker for you using an internal air-powered shock
- Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
- Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
- Manual adjust speaker tripod
- Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Raise and Lower the Speaker with Ease!
- Strong and Easy-to-Use “Z” knob
- Incredibly Sturdy Pole
- M20 Threaded Pole Mount
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)
Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.
- Lightweight
- Metal die-cast collars
- M20 Threaded socket
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)
