Bluetoothiga helipult RCF L-PAD 10C + L-PAD BLUETOOTH CARD

Bluetoothiga helipult RCF L-PAD 10C -2

Bluetoothiga helipult RCF L-PAD 10C -3

Bluetoothiga helipult RCF L-PAD 10C -4

Bluetoothiga helipult RCF L-PAD 10C -5

Bluetoothiga helipult RCF L-PAD 10C -6

RCF L-PAD BLUETOOTH CARD

L-PAD BLUETOOTH CARD

L-PAD BLUETOOTH CARD -2

Bluetoothiga helipult RCF L-PAD 10C + L-PAD BLUETOOTH CARD

Hind: –
Hinna küsimiseks lisage toode ostukorvi

Korvi lisatud toodetele saab ka paari klikiga küsida nimelise ja ametliku hinnapakkumise, soovi korral koos paigaldusega.

Eesti piires on kohaletoimetamine tasuta

Lihtne helipult kuni nelja mikrofoni korraga kasutamiseks ja neile vajadusel taustheli juurde lisamiseks bluetoothi abil või juhtmega.

Seadmel on kaasas bluetoothi kaart, mis võimaldab väga mugavalt ja juhtmevabalt erinevatest nutiseadmetest bluetooth-ühenduse abil muusikat taasesitada.

Seadmel on neli heade eelvõimenditega mikrofonisisendit ning neli stereosisendit (korraga kasutatavad 4 + 2 või 2 + 4). Mikrofonide heli on võimalik korrigeerida 3-ribalise ekvalaiseriga, stereosisendite heli kaheribalise ekvalaiseriga.

Seadmel on ka aux liin mitme väljundtsooni kasutamiseks, fantoomtoide kondensaatormikrofonidele ning kompressorid kahel kanalil mikrofonide helinivoo ühtlustamiseks.

Helipulti on võimalik spetsiaalse vahetüki abil paigutada ka mikrofonistatiivile.

Allpool olev info on pärit tootja kodulehelt:

Kasutusjuhend: 10307447 Manuale L-PAD10C RevA

With four transparent sound mic inputs, four stereo line inputs and the 2tk in/out, L-PAD10C is the ideal tool for duo/trio gigs, speech, background music diffusion, parties and all activities requiring several stereo inputs to be mixed. Two single-control compressors on mic channels help to handle even the more dynamic complex signals. The super versatile L-PAD slot permits the optional L-PAD MP3 PLAYER, PLAYER/RECORDER or BLUETOOTH CONNECTION cards
to be inserted for even more flexible use. Thanks to the accurate Italian design L-PAD10C is easy to grab, transport and handle in all live situations. It is possible to install L-PAD10C on a mic stand thanks to the dedicated optional accessory or in a rack using the dedicated optional rack ears.

APPLICATIONS

Duo/trio
Speech
Background music
Worship

FEATURES

4 mono INPUT + 4 stereo INPUT
2 Compressors (Ch. 1-2)
3band/2band EQ
1 AUX send
External PSU 18V~ 1000mA

ELECTRONIC SPECS.

Frequency Response:10Hz ÷ 55kHz
Total Harmonic Distortion (THD+N):0.03%%

INPUTS

Mic:4
Gain range:0dB ÷ -50dB
Low Cut:75 HzHz
Phantom Power +48V:Yes
Mono Line:2
Gain range:15dB ÷ -35dB
Stereo Line:4
2 Track:Yes
Stereo Return:1

OUTPUTS

Main MIX:1
Control Room:Yes
AUX Send:1
Phones:1
2 Track:Yes

COMPRESSORS

Single Control:2

BANDS on MONO channels:3
+/-15dB @12kHz shelving, +/-15dB @2.5kHz, +/-15dB @80Hz shelving
BANDS on STEREO channels:2
+/-15dB @12kHz shelving, +/-15dB @80Hz shelving

AUXILIARY SENDS

AUX:1 POST

OTHER FEATURES

Optional Card Slot:Yes

ELECTRICAL SPECS.

Power supply:External
Power requirements:100-240V
Power consumption:24W

CABINET

Cabinet Material:ABS
Colour:Black

PHISICAL SPECIFICATION

Height:16.2/0.64 mm/inch
Width:256.7/10.11 mm/inch
Depth:387.1/15.24 mm/inch
Net Weight:2.32/5.11 Kg/Lbs

Bluetoothi kaart:

Allpool olev info on pärit tootja kodulehelt:

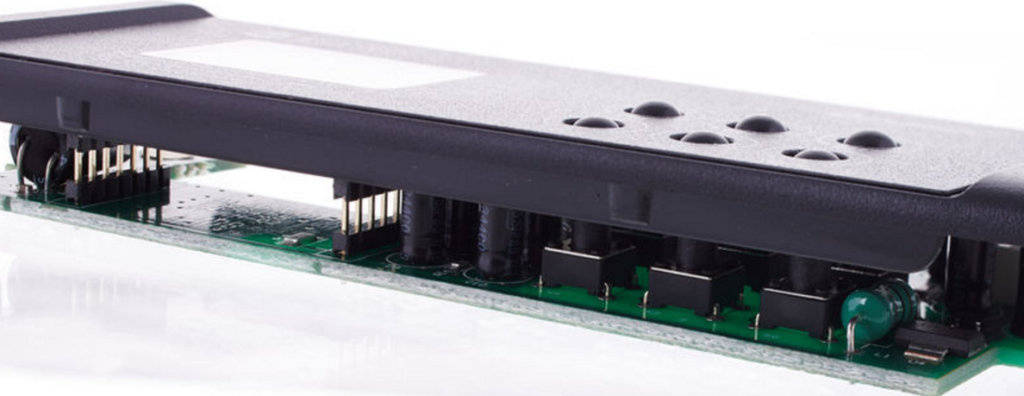

The BLUETOOTHTM CARD can be connected to any BLUETOOTHTM device, such as smartphones or tablets
and your playlist will be reproduced directly through the L-PAD mixer. This card allows a highly practical wireless connection with the mixer — ideal for background music reproduction or any other music application.

FEATURES

BLUETOOTH connection
Connect smartphones or tablets
Music reproduction
