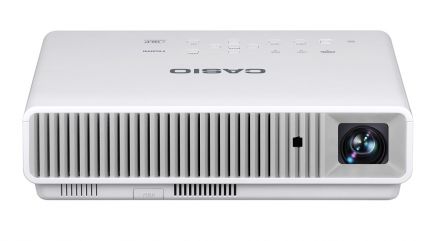

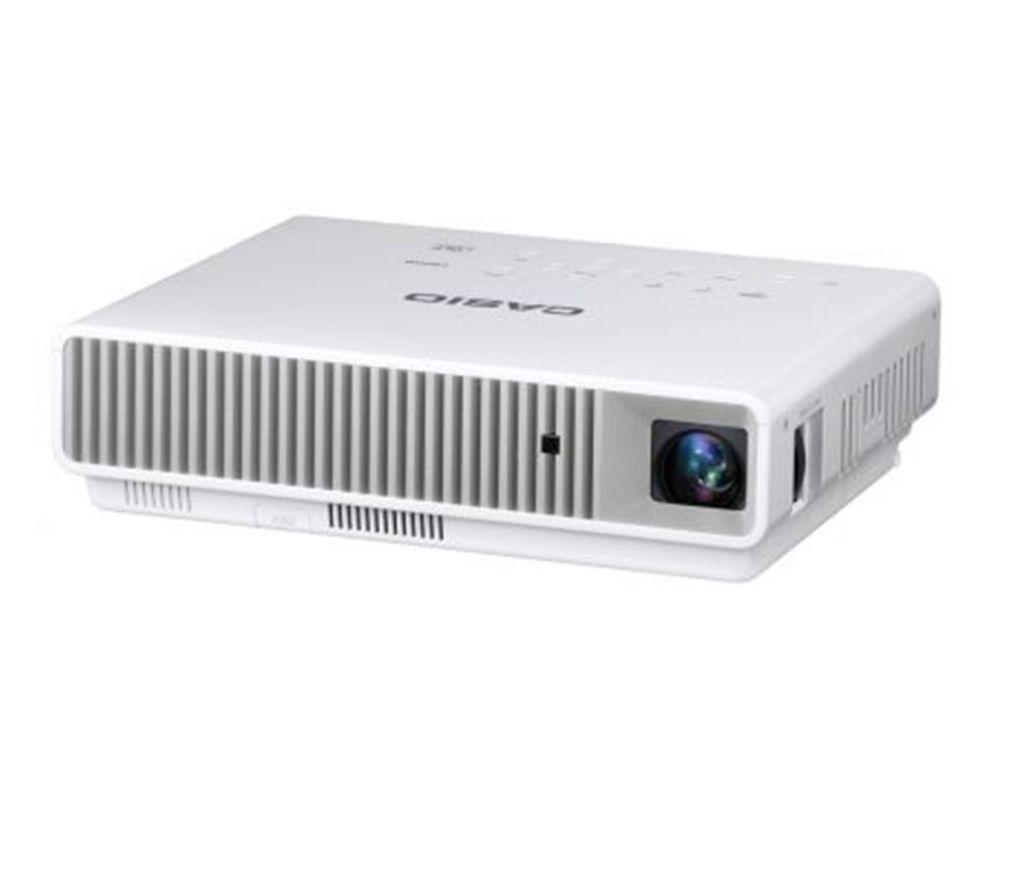

Casio XJ-M151 laser LED projektor 3000 lum

• Light source with long life time
• Mercury-free illumination technology
• Up to 20,000 hours without lamp replacement
• Significant reduction in follow-up costs
• Brilliant, natural colour reproduction
• Up to 3.000 ANSI lumens
• Intelligent brightness control
• 3D Ready¹

• 1.5x optical zoom
• Suitable for continuous use²
• Quick Start & Stop
• Extended remote control options (RS-232)

Technical Specifications

Display
	Technology:	0,55″ DLP® chip
	Resolution:	1.024 x 768 pixels
Illumination technology
	Type:	Laser and LED hybrid technology
	Service life:	Up to 20,000 hours
	Contrast ratio:	1,800:1
	Colour depth:	16.77 mil.
Projection lens
	Technology:	1.5x optical zoom
	Projection ratio:	(Viewing distance : width): 1.64-2.46 : 1
	Offset:	50 %
	Min. distance:	1 m
	Focus:	Manual
Projection
	Size of projection screen:	30″ (0.76 m) to 300″ (7.62 m)
	60“ Screen:	2.0 m to 3.0 m viewing distance
	100“ Screen:	3.4 m to 4.9 m viewing distance
Keystone correction
	Vertical (automatic/manual):	+30°/±30°

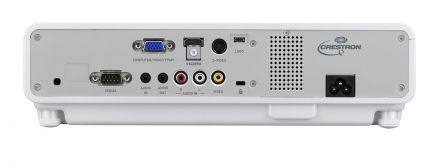

Interfaces
	Computer:	1 x 15-pin D-sub (VGA)
	Digital input:	HDMI port
	Video:	S-Video terminal x 1 RCA pin terminal (composite) x 1
	Audio:	Input terminals: stereo mini jack x 1 RCA pin terminal (L/R) x 1 Output terminal: stereo mini jack x 1
	Other/further inputs:	Micro-USB type B: logo transfer/firmware update
Extended functions
		Direct power on, direct power off, rear projection, freeze, blank screen, ceiling mounting
Audio and control systems
	Audio system:	5 W monaural speaker
	Control inputs:	RS-232 (mini nine-pin D-sub) x 1 LAN RJ-45 x 1
	Compatible control systems:	AMX, Crestron, Extron, SP Controls
Operating noise
		33 dB(Default mode)/28 dB (Safe mode)
Energy consumption
	Active:	180 W (Eco Off)/145 W (Eco On Level 1)
	Standby:	0.23 W
Computer compatibility
	Max. resolution (compressed):	UXGA (1,600 x 1,200 pixels)
Video compatibility
	Norms:	PAL-N/-M, PAL60, SECAM, NTSC
	Signals:	Composite video, YcbCr, YPbPr
Included with product
		RGB cable, IR remote control, Quick guide
Optional accessories
	DLP® 3D projection:	Active shutter glasses (YA-G30) and software (YA-D30)
General
	Dimensions (W x H x D):	311 x 84 x 244 mm
	Weight:	3,9 kg
	Casing/colour:	white
	Operating temperature:	5-35°C
	Warranty:	1. When used for a maximum of 12 hours per day Projector: 3 years Light source: 5 years or 10,000 hours3 2. When used continuously for more than 12 hours per day Projector: 2 years Light source: 2 years or 6000 hours3

1. 3D projection is not possible by using HDMI connector.
2. Projector restarts once per day. For continuous use, please see special warranty
3. Whichever is reached first.

The DLP® logo is a registered trademark of Texas Instruments. High-Definition Multimedia Interface is a trademark or registered trademark of HDMI Licensing, LLC.

The Casio Signature Model Projectors have increased I/O connectivity, are DLP 3D Ready and have auto brightness adjustment to save power and reduce eye fatigue.

The USB models allow Wi-Fi connectivity so users can display wireless presentations from a laptop or by using MobiShow, a smart phone application, where presentations can be made using a mobile device.

Learn more about Casio’s Slim Projectors(Opens a new window)

ECOLOGY: Laser & LED Hybrid Light Source supporting high-brightness projection without mercury CASIO has applied its unique new Laser & LED Hybrid Light Source to achieve breakthrough development of a mercury-free high-brightness projector. Adopting a new semiconductor-based light source system combining a blue laser, phosphor and a red LED, we have achieved both high-brightness performance enabling projection in well-lit rooms and environmental friendliness with mercury eliminated from the light source.

ECONOMY: Approximately 20,000-hour long-life light source with less brightness degradation The light source’s life of approximately 20,000 hours far outshines that of conventional projectors that require mercury lamp replacement. It saves maintenance labor and contributes to a significant reduction in operating costs. Since brightness degradation is more gradual than with mercury lamps, moreover, it maintains vivid image quality through long-term use.

USABILITY: Startup as quick as 5-seconds* Fast ON & OFF switching for convenient usability The light source’s life of approximately 20,000 hours far outshines that of conventional projectors that require mercury lamp replacement. It saves maintenance labor and contributes to a significant reduction in operating costs. Since brightness degradation is more gradual than with mercury lamps, moreover, it maintains vivid image quality through long-term use.* Except XJ-A series

VISIBILITY: Enhanced beauty and realism A further leap forward in color reproduction The dramatic improvement in color purity achieved by the new light source has significantly improved color reproduction. Not only are the colors clearer and more beautiful, but the projected images also look brighter due to the visual effects of the high-purity colors. Users benefit from clearer, more powerful images than conventional projectors can achieve.

COMMITMENT TO USABILITY:Concern for today’s high environmental quality standards CASIO has developed a light source with no mercury lamp to eliminate the release of mercury, a highly toxic element, and adopted energy- and resource-saving designs. Superior environmental performance is also achieved by innovations such as Intelligent Brightness Control, which adjusts the projection brightness automatically depending on the level of illumination in the surrounding environment and contributes to daily power savings.

Vertical positioning expanding the scope of use The projector’s ability to project images straight up or down facilitates creation of visual presentations with high-impact advertising effects, such as promotions projected onto the floor of a conference hall or presentations using a showroom ceiling.

Smart wireless presentations (C-Assist) Wireless communication from a smartphone or tablet with the C-Assist dedicated app installed enables control of projected images, real-time projection of images from a camera, projection of browser pages and remote PC operation. The scope of available presentation styles is broadened dramatically. Wireless presentation Wireless camera Browser projection Simple PC remote control (Opens a new window)(Opens a new window) Check OS versions compatible with the app on Google Play or the App Store. *App functions and operating environments may be altered without prior notice. *The app may not function on some smart device.

Centralized control and remote operation functions The projector can be controlled from a PC using an RS-232C connection or wired LAN, with centralized control of all terminals on the network enabled. The main projector unit is equipped with a key lock that disables all operations except power ON/OFF to prevent unauthorized use and improper operation. Projector Speaker, blind and others LAN (RJ-45) Control panel And AMX, Extron Software: “RoomView” by Crestron Browser image

Internal memory for PC-free presentations Presentation materials stored in the (2GB) internal memory can be projected without a PC. Operators can project still or moving images as well as files in PDF (and other) formats without conversion. Operation can be conducted with the bundled remote controller or a smartphone.

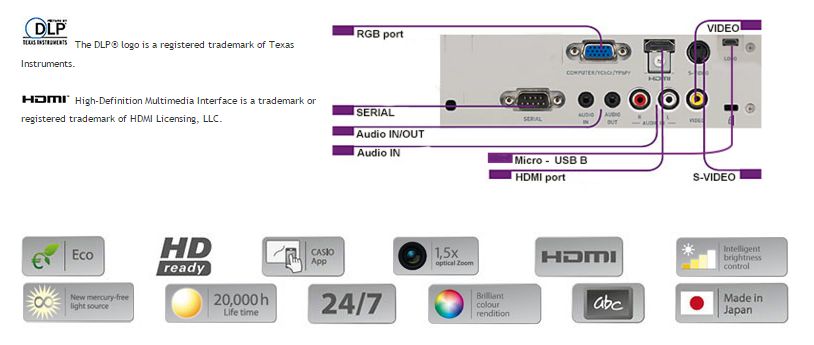

Interfaces   USB terminal (Micro-B)* USB terminal (Type A)* Wired LAN terminal* Computer terminal HDMI terminal S-Video input terminal Video input terminal (RCA) Audio input terminals(RCA) Audio output terminal Audio input terminal Control terminal(RS-232C)*Supported models: XJ-A257/A247/A147

Linkage to CASIO Digital Equipment   [Digital cameras] EXILIM Project your photos and videos directly.[Direct projector connection capability] Graphing Calculator Connect the calculator to a data projector and project the calculator screen. For more information, please check here(Opens a new window).Allikas: http://www.casio.com/products/Projectors/Signature_Models/XJ-M151/content/Special_Features/
