Korvi lisatud toodetele saab ka paari klikiga küsida nimelise ja ametliku hinnapakkumise, soovi korral koos paigaldusega.
Eesti piires on kohaletoimetamine tasuta

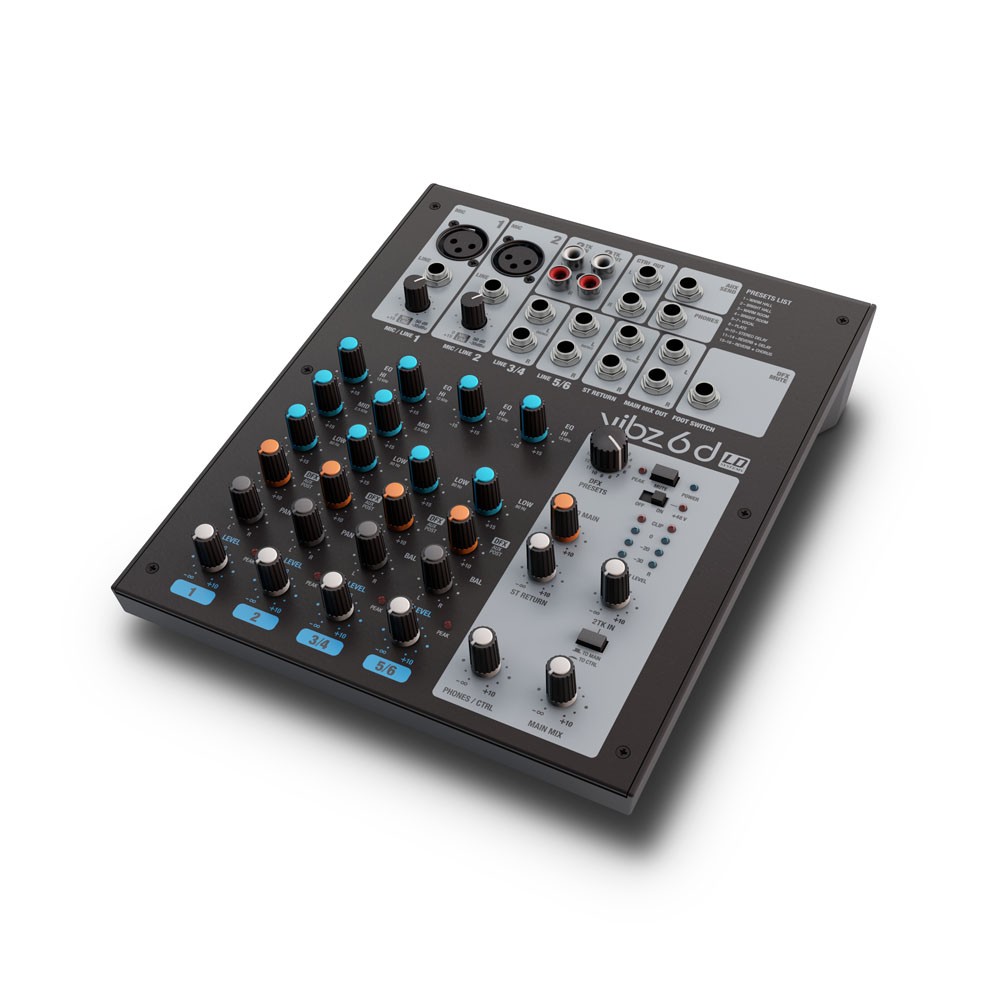

LD Systems VIBZ 6 D on soodne ja kompaktne kuue kanaliga mikser, mis sobib kasutamiseks meelelahutajatele, väikestele bändidele, kodusteks helisalvestusteks ja installatsioonikdeks.
Helipuldil on kaks mikrofoni sisendit, mis on varustatud kvaliteetsete eelvõimendustega, fantoomtoite, 3-band EQ-ga ja kaks stereosisendit, mille on olemas 2 -band EQ-d kõrgete ja madalate helide seadistamiseks.
Helisalvestamiseks on seadmel olemas vajalikud RCA signaalisidendid ja väljundid.
Vokaalseid esitlusi on võimalik rikastada 16-ne erineva digitaalse kajaefektidega.
Tehniline info:
Allpool olevad andmed on tootja kodulehelt.
Kasutusjuhend: LDVIBZ6D EN_DE_FR_ES_PL_IT
Specifications
Product number: LDVIBZ6D
Product type: Mixers
Type: Live
Channels: 6
Mono Channels:
Mono Mic and Line Input Channels: 2
Mono Mic input connectors: XLR, 6.3 mm TRS
Mono Mic Input Type: electronically balanced
Mono Mic Input Frequency Range: 10Hz
Amplification Range mono Mic Input: 0 – 50dB
Mono Mic Input Input THD-N: 0.0058%
Mono Mic Input Impedance: 4kOhm(s)
Mono Line Input Type: electronically balanced
Mono Line Input Frequency Range: 10Hz
Amplification Range mono Line Input: 0 – 50dB
Mono Line Input Input THD-N: 0.0045 %
Mono Line Input Impedance: 21kOhm(s)
Mono Line Input S/N Ratio: 116dB
Mono Channel Equalizer High: +/- 15 dB @ 12000 Hz
Mono Channel Equalizer Low: +/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels: Gain, AUX (DFX) Post, pan, 3-band EQ (High, Mid, Low), Channel Volume
Phantom power: 48 V DC switchable
Stereo Channels:
Stereo Line Input Channels: 2
Stereo Line Input Connectors: 6.3 mm TS
Stereo Line Input Type: unbalanced
Stereo Line Input Frequency Range: 10 – 54000Hz
Stereo Line Input Input THD-N: 0.0045 %
Stereo Line Input Impedance: 3,7kOhm(s)
Stereo Line Input S/N Ratio: 116dB
Stereo channel equalizer treble: +/- 15 dB @ 12000 Hz
Stereo channel equalizer bass: +/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels: Channel Volume, 2-band EQ (High,Low), AUX (DFX) Post, Balance
Main Section:
AUX / Effects Send Channels: 1
AUX / Effects Send Connectors: 6.3 mm stereo jack unbalanced
Stereo AUX Return Channels: 1 x stereo
Stereo AUX Return Connectors: 2 x 6.3 mm TRS
Stereo Tape Out Channel: 1 x stereo
Stereo Tape Out Connectors: 2 x RCA (Cinch)
Stereo Tape In Channel: 1 x stereo
Stereo Tape In Connenctors: 2 x RCA (Cinch)
Unbalanced stereo Main Outputs: 1
Unbalanced stereo Main Output Connections: 6.3 mm TRS
Unbalanced Stereo Main Out Impedance: 120Ohm(s)
Max. Unbalanced Stereo Main Out Level: +20dBu
Stereo Control Room Out: 1
Stereo Control Room Out Connectors: 6.3 mm stereo jack unbalanced
Headphones ouput: 1
Headphones outputs: 6.3 mm TRS
Digital Effects Processor: Yes, 24-bit AD/DA Resolution
Number of Presets: 16
Footswitch Connector DFX Mute: 6.3 mm TRS
Main section controls: Stereo Return Volume, DFX Presets, 2-track Assignment (Main, Contr. Room), Phantom Power, Phones / Control Room Volume, DFX To Main Volume, 2-track In Volume, Master Volume, DFX Mute Schalter
Indicators: Phantom Power, 4-segment Level Meter, Channel Peak, Power, DFX Peak / Mute
Operating voltage: 18 V AC – 1 A, External PSU
Width: 209mm
Height: 68mm
Depth: 260mm
Weight: 1,45kg
Seadet tutvustav video:
