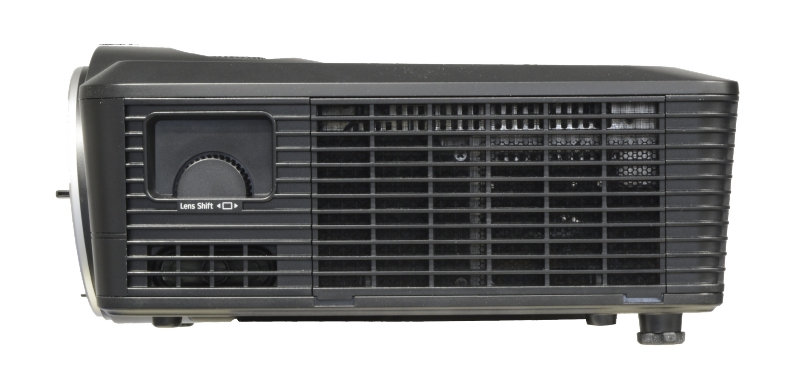

Kompaktne ja kerge EIKI EK-600U projektor on ideaalne abivahend klassiruumidesse ja konverentside läbiviimiseks.
Valgustugevusega 6000 lum on täiesti piisav, et projekteerida detailne WUXGA eraldusvõimega (1920 x 1200) ja selge pilt ka valgusküllastes ruumides.
Projektor suudab kuvada 40″ – 300″ pildi 0,88 – 10,83 m kauguselt.
Seadme täiendavad plussid:
-valgustugevus 6000 lum
-WUXGA eraldusvõimega (1920 x 1200)
-lambi tööiga 4000 h
-10 W kõlar
-HD BaseT tehnoloogia
– garantii 3 aastat või 6000 h (lambil 1 aasta või 500 h)
Terve Eesti piires kohaletoomine tasuta.
Allpool olevad andmed on tootja kodulehelt.
Kasutusjuhend: EK-600U-EK-601W-Owners-Manual-English-20180305
Tehnilised andmed: EK-600U-EK-601W-Color-Data-Sheet
Tehniline külg
Brightness: 6,000 ANSI Lumen
Contrast Ratio: 10,000:1 (High Contrast Mode)
Illumination Uniformity: 85%
Resolution and Aspect Ratio: WUXGA (1920×1200), 16:10
Color Reproduction: 24-bit (16.7 million colors)
Projection Lamp: 365 Watts UHP
Estimated Lamp Life: Normal / Eco: 4,000 / 3,000 hours
Total Pixels: 2,073,600 ( 1920×1200) x 1
Imaging System: 0.67″ DMD™ DLP® chip x 1
Scanning Frequency: Auto: H Sync. 15 ~ 91 kHz, V Sync. 24 ~ 85 Hz
Pixel Clock: up-to 120 MHz
Lens: Attached – Manual Zoom and Focus
Lens Specs: f : 2.3 ~ 3.15; FL: 0.694 ~ 1.234 in (17.63 ~ 31.36 mm)
Lens Ratios: Zoom Max:Min: 1.8:1; Throw:Width 1.20 ~ 2.2:1
Image Diagonal: 40 ~ 300 in (101.6 ~ 762 cm)
Image Width: 2.8 ~ 20 ft (0.79 ~ 6.1 m)
Throw Distance: 2.9 ~ 35.5 ft (0.88 ~ 10.83 m)
Projector Elevation Adjustment (legs): up-to 9°
Maximum Pitch: Up-to 30° Up or Down
Anti Keystone: Fixed Image Offset, Ratio (Top/Bottom) 13:1
Vert/Horiz. Keystone Correction: Digital:V:+/- 30°(Auto)H: +/- 30° (Manual)
Lens Shift: Vertical: +100~120% (Manual) Horiz.: +/-10% (Manual)
Image Orientation: Normal, Reversed, Inverted
Local Control / Power Management: Full Function / Auto Shutdown
Remote Control: Wireless x 1
RS-232 Control: Dsub9 x 1
LAN Port: RJ45 x 1
Computer Input in Pixels: up-to 1600 x 1200 (4:3), 1920 x 1200 (16:10)
Analog 4×3 Inputs: UXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC
Analog Wide Inputs: WUXGA, WSXGA+, WXGA+, WXGA
Digital 4×3 Inputs: UXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC
Digital Wide Inputs: WUXGA, WSXGA+, WXGA+, WXGA
Video Formats: NTSC / PAL / SECAM
Video Input Analog: 480i/p, 575i/p
Video Input Digital: 480p, 575p, 720p, 1080i/p
Image Signal Resizing: Smart Scaling Technology
Image Signal Inputs
Computer 1: Dsub15 x 2
Digital Video (w/ HDCP & MHL): HDMI x 2
HD BaseT: RJ45 x 1
Display Port: Display Port x 1
S-Video: S-video x 1
Microphone: MiniStereo x 1
USB Type A For Power Out ( 5V / 1.5A): Type A x 1
USB Type B (Firmware Update): Type B mini x 1
Composite Video: RCA x 1
Audio Signal Inputs
Computer Audio: MiniStereo x 2
Microphone: MiniStereo x 1
Video Audio: RCA x 2 (L/R)
Outputs
12V Trigger: MiniStereo x 1
3D Sync: Mini DIN 3-pin x 1
Computer Monitor: Dsub15 x 1
Audio Output: Variable, Stereo: MiniStereo x 1
Amplifier: Stereo: 10 Watt
Speaker: 1.4 in (3.7 cm) x 2 (Stereo)
Fan Noise (Eco / Normal): 32 dB / 35 dBA
Cabinet Size (HxWxD) – excluding legs: 5.7 x 16.6 x 14.1 in (14.4 x 42.1x 35.8 cm)
Weight: 13.6 lb (6.2 kg)
Packaged Cabinet Size (HxWxD): 8.9 x 19.1 x 18.3 in (22.6 x 48.5 x 46.4 cm)
Packaged Weight: TBD
Operating Temperature: 41 ~ 104°F (5 ~ 40°C)
Electrical Safety Compliance: IEC / UL / cUL
Electromagnetic Compatibility: FCC Class B, CE Mark
Power Requirements: 100 ~ 240V AC, 50/60 Hz
Power Consumption: 0.5 W in Eco Standby mode, up-to 510W
Heat: up-to 1,740 BTU/hr
Security Facilities: Kensington® Security Slot
UPC: 4571194678253
User Maintenance: Clean Filter, Replace Lamp
Limited Warranty: to the original end-use customer only
Projector: 3 years / 6000 hours (which ever occurs first)
Lamp: 1 year ownership / 500 hours use (which ever occurs first)
